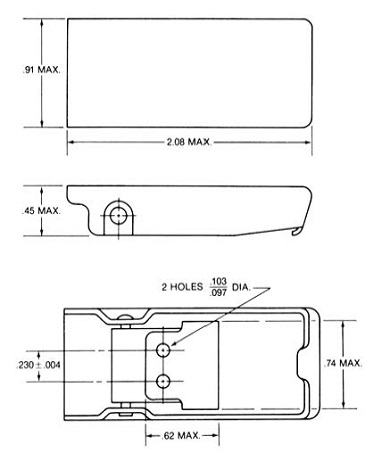

Camloc Latches 96L Series

96L Series

Strength: 150 pounds ultimate; 100 pounds working.

Specifications

Material: See tables above.
Strength: 95L: 100 pounds ultimate; 50 pounds working.
96L: 150 pounds ultimate; 100 pounds working.

Material	Handle Finish¹	Standard Latch Part No.²
Steel	Cadmium Plated, Clear Chromate	96L01-1-1AB
Steel	Chromium Plated	96L01-1-1AG
Steel	Bright Nickel Plated	96L01-1-1AJ

Weight Per Piece (lbs.): .056
1. All other latch parts are cadmium plated with clear chromate.
2. 96L standard latch is supplied with helically coiled spring elements.

Strike

Material	Strike Part No.
Steel (Cadmium Plated, Clear Chromate)	96H01-1-1AB

Weight Per Piece (lbs.): .005

Operating Action: Over-Center.
Adjustment: Self-compensating spring elements(s).
Take-up: 1.00 inches minimum.

Panel Preparation and Installation Data

Latch Series	Strike Series	A Dia.	Rivet Dia.	B TYP.	Approximate Clamping Load
95L01	95H01	.103 .097	3/32	.530	18 Pounds
95L01	95H01	.103 .097	3/32	.590	26 Pounds
95L07	95H07	.134 .129	1/8	.580	N/A
96L01	96H01	.103 .097	3/32	1.000	20 Pounds
96L01	96H01	.103 .097	3/32	1.060	30 Pounds

Locate and form four "A" Diameter holes.
Note: "B" typical will obtain approximate clamping loads as indicated in table.
Attach with rivets (size listed in table).
