Camloc Latches 69L Series

Strikes

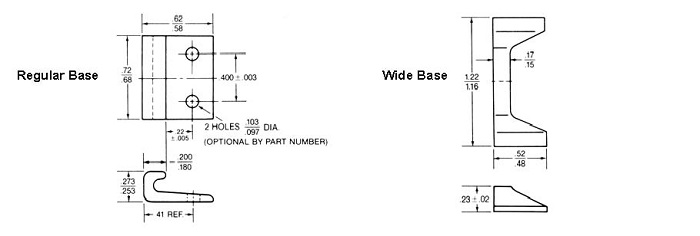

Regular and Wide Base


Description

Material

Part No.

Mounting Method

Weight Per Piece (lbs.)

Regular Base

Aluminum (Unfinished)

69L19-1-1AA

Mechanical

0.003

69L19-2-1AA

Weld-on

0.004

Wide Base

Steel (Unfinished, Oil Coated)

69L2-1-1AA

Weld-on

0.005

Panel Preparation and Installation Data

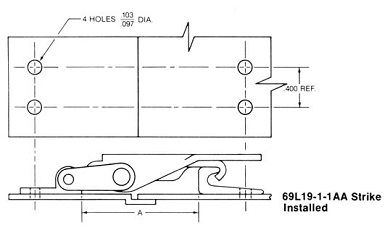

69L19-1-1AA strike installed

Latch Part No.

A TYPICAL

69L19 Strike Installed

69L2 Strike Installed

69L33-1-1AA

1.21

1.24

69L37-1-1AA

1.23

1.26

69L37-1-2BA

1.27

1.24

69L37-1-3BA

1.24

1.27

69L38-1-1AA

1.23

1.26

69L38-1-2BA

1.27

1.24

69L38-1-3BA

1.24

1.27

69L38-1-3BC

1.24

1.27

Specifications

Material: See tables.
Strength: 300 pounds ultimate; 200 pounds working.
Operating Action: Under-Center.
Adjustment: Threaded drawhook: up to .200 inches.
Take-up: .400 inches minimum.

69L2-1-1AA strike installed

Mechanical Attachment

  1. Locate and form 4 holes .103/.097 Dia.
  2. Attach latch and strike with 3/32 diameter rivets.

Weld Attachment

Locate latch and strike on center and weld in place.

H-25
