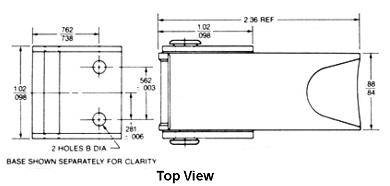

Camloc Latches 51L Series

Reverse Base Latches

Specifications

Material: See table.
Strength: 500 pounds ultimate; 350 pounds working.
Operating Action: Under-Center.
Adjustment: Threaded drawhook: up to .300 inches.
Take-up: .500 inches minimum.

Material¹	Regular Version			Secondary Lock Version			Hasp Version
	Part No.	B Dia.	Weight Per Piece (lbs.)	Part No.	B Dia.	Weight Per Piece (lbs.)	Part No.	A Dia.	Weight Per Piece (lbs.)
Steel (Cadmium Plated, Gold Chromate)	51L3-1-1AA	.148 .140	0.11	51L3-1X1AA	.148 .140	0.12	51L109-1-1AA	.136 .128	0.12
							51L109-2-1AA	.148 .140
Handle and Base: Steel (Chromium Plated); Other: Steel (Cadmium Plated, Clear Chromate)	51L3-1-1AB			51L3-1X1AB
Stainless Steel (Passivated)	51L3-1-1BC			51L3-1X1BC			51L109-1-1BB	.136 .128	0.12
	51L3-1-2BC²
	51L3-3-2BC²	.136 .128					51L109-2-1BB	.148 .140

Notes:

Secondary lock versions are supplied with a Zinc die cast catch.
P/N's 51L3-1-2BC and 51L-3-3-2BC are supplied with lift spring.

Strikes

Material	Part No.	Mounting Method	A Dia.
Steel (Cadmium Plated, Gold Chromate)	51L7-1AA	Mechanical	.148 .140
Steel (Chromium Plated)	51L7-1AB	Mechanical	.148 .140
Steel (Zinc Plated)	51L7-2AC*	Weld	N/A
Steel (Oil Coated)	51L7-3AG	Mechanical	.134 .128
Steel (Oil Coated)	51L7-1AG		.148 .140
Stainless Steel (Passivated)	51L7-1BF		.148 .140

Weight Per Piece (lbs.): 0.10
Caution: Welding heat may reduce strength of strike.

Aluminum Version

Material	Part No.	Mounting Method
Aluminum	51L8-1AA	Mechanical
Aluminum	51L8-2AA	Weld

Weight Per Piece (lbs.): 0.10

Material	Part No.	Mounting Method
Steel (Cadmium Plated, Gold Chromate)	51L59-1-1AA	Mechanical
Steel (Cadmium Plated, Clear Chromate)	51L59-1-1AB	Mechanical

Weight Per Piece (lbs.): 0.02
