Camloc Latches 20L Series

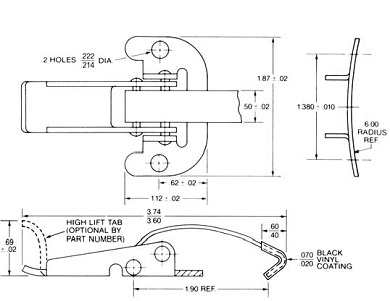

Radiused Base

Description	Material	Part No.	Weight Per Piece (lbs.)
Radiused Base	Steel (Chrome Plated)	20L01-4-3AC	0.11
Radiused Base with High Lift Tab	Steel (Zinc Plated)	20L28-4-2AA
	Steel (Zinc Plated except oil coated base)	20L28-4-2AB
	Steel (Chrome Plated)	20L28-4-2AC

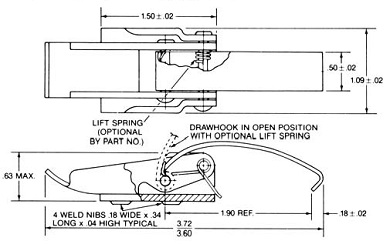

Weld-on Base (Narrow Width)

Description	Material	Part No.	Weight Per Piece (lbs.)
Lift Spring Installed	Drawhook: Steel (Zinc Plated) Base: Steel (Oil Coated)	20L06-1-1AA	0.13
Regular	Drawhook: Steel (Zinc Plated) Base: Steel (Oil Coated)	20L06-2-1AA	0.12

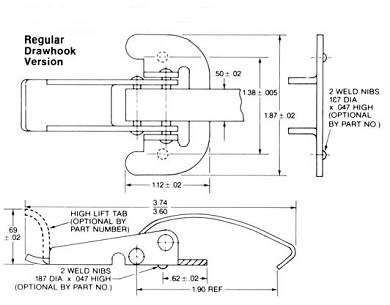

Weld-on Base (Regular Width)

Description	Material	Part No.	Weight Per Piece (lbs.)
Supplied With Weld Nibs	Drawhook: Steel (Zinc Plated) Base: Steel (Oil Coated)	20L01-2-1AB	0.11
Supplied Without Weld Nibs		20L01-5-1AB	0.11
High Lift Tab With Weld Nibs		20L28-2-1AB	0.11
High Lift Tab Without Weld Nibs		20L28-5-1AB	0.11

Description	Material	Part No.	Weight Per Piece (lbs.)

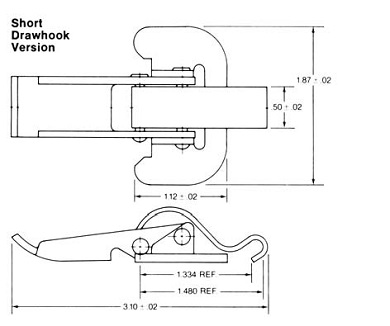

Short Drawhook. Supplied Without Weld Nibs	Drawhook: Steel (Zinc Plated) Base: Steel (Oil Coated)	20L15-1-1AA	0.1

Specifications

Material: See tables.
Strength: 200 pounds ultimate;     Adjustment: Self-compensating spring-steel drawhook.
               100 pounds working.     (20L01-3-1AA also has slotted base.)
Operating Action: Over-Center.     Take-up: .500 inches minimum.
