Camloc Latches 49L Series

49L Series (Smooth Handle Version)

Strength: 1000 pounds ultimate; 650 pounds working.

Description	Material	Part No.	Mounting Method	Weight Per Piece (lbs.)
Steel Base	Lever Assembly: Steel (Cadmium Plated) Base: Steel (Zinc Plated)	46L14-1AA	Weld	0.280
Steel Base		46L14-3AA	Rivet	0.280
Aluminum Base	Lever Assembly: Steel (Cadmium Plated) Base: Aluminum (No Finish)	46L23-1AA	Weld	0.250
Aluminum Reverse Base	Lever Assembly: Steel (Cadmium Plated, Gold Chromate) Base: Aluminum (No Finish)	46L26-1AA		0.260
Aluminum Reverse Base	Lever Assembly: Steel (Cadmium Plated, Clear Chromate) Base: Aluminum (No Finish)	46L26-1AB
Aluminum Reverse Base With Locking Detent	Lever Assembly: Steel (Cadmium Plated, Gold Chromate) Base: Aluminum (No Finish)	46L26-2AA
Smooth Handle	Handle & Base: Steel (Chrome Plated) Drawhook: Stainless Steel (Passivated)	49L01-1-1AA	Rivet	0.380

Specifications

Material: See table.
Strength: 1000 pounds ultimate; 650 pounds working.
Operating Action: Under-Center.
Adjustment: Threaded drawhook adjustment up to .480 inches maximum.
Take-up: .380 inches minimum.

Strikes

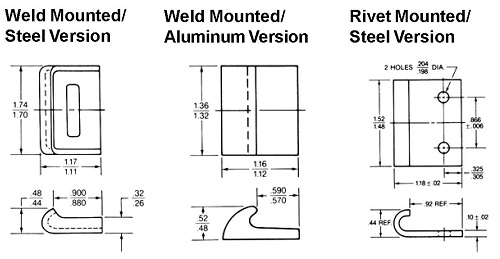

49L rivet, weld mounted / steel, aluminum

Description	Material	Part No.	Mounting Method	Weight Per Piece (lbs.)
Weld Mounted/Steel Strike	Steel (Zinc Plated)	46L20-1AA	Weld	0.064
Weld Mounted/Aluminum Strike	Aluminum (No Finish)	46L20-1BB	Weld	0.035
Rivet Mounted/Steel Strike	Steel (Zinc Plated)	18L13-1-1AA	Rivet	0.060
