Camloc Latches 20L Series

Features:

  • Simple rugged design.
  • Can be used with or without a strike.
  • High lift tab available for easy opening.
  • Wide variety of bases and drawhooks.
  • Optional lift spring.

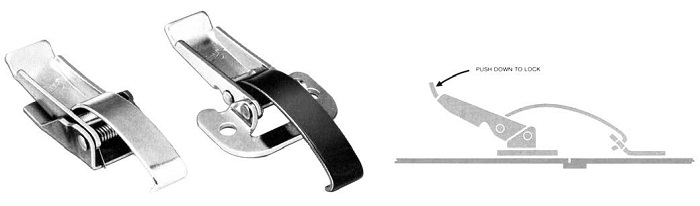

20L series camloc latch

Strength: 200 pounds ultimate; 100 pounds working.

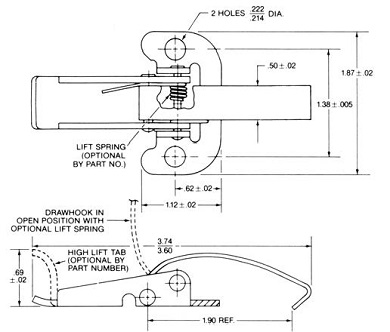

Regular Base

regular base latch

Description

Material

Part No.

Weight Per Piece (lbs.)

Regular Base

Steel (Zinc Plated)

20L01-1-1AA

0.12

Steel (Chrome Plated)

20L01-1-1AC

Lift Spring Installed

Steel (Chrome Plated)

20L06-1-2AB

0.13

Regular Base with High Lift Tab

Steel (Zinc Plated)

20L28-1-1AA

0.11

Steel (Zinc Plated except oil coated base)

20L28-1-1AB

Steel (Chrome Plated)

20L28-1-1AC
H-16

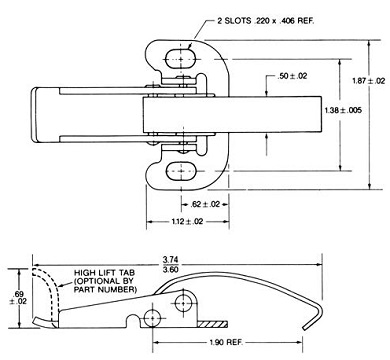

Adjustable Base

adjustable base latch

Description

Material

Part No.

Weight Per Piece (lbs.)

Adjustable Base

Steel (Zinc Plated)

20L01-3-1AA

0.11

Adjustable Base with High Lift Tab

Steel (Zinc Plated)

20L28-6-1AA

Steel (Zinc Plated except oil coated base)

20L28-6-1AB

Steel (Chrome Plated)

20L28-6-1AC
