Camloc Latches 34L Series

Features:

  • Low profile (.290 inches maximum protrusion in locked position) and narrow width (.55 inches max.)
  • High strength to weight ratio
  • Secondary lock version available
basic and secondary lock versions

Strength: 125 pounds ultimate; 70 pounds working.

Basic Latch

basic latch

Secondary Lock Version

lock version
strike weld version

Description

Material

Part No.

Weight Per Piece (lbs.)

Basic Latch

Steel (Cadmium Plated, Gold Chromate)

34L01-1-1AA

.016

Steel (Zinc Plated, Clear Chromate)

34L01-1-1AB

.016

Steel (Chromalloy)

34L01-1-1AC

.016

Secondary Lock Version

Steel (Cadmium Plated, Gold Chromate)

34L01-2-1AA

.018

Steel (Zinc Plated, Clear Chromate)

34L01-2-1AB

.018

Steel (Chromalloy)

34L01-2-1AC

.018

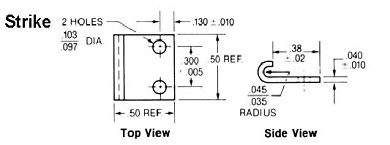

Strike

Steel (Cadmium Plated, Gold Chromate)

34L02-1-1AA

.007

Steel (Zinc Plated, Clear Chromate)

34L02-1-1AB

.007

Steel (Chromalloy)

34L02-1-1AC

.007

Specifications

  • Material: See table above
  • Strength: 125 pounds ultimate; 70 pounds working Operating Action; Over-center
  • Adjustment: Self-compensating spring-steel drawhook
  • Take-up: .150 inches minimum

Panel Preparation and Installation Data

top and side view
  1. Locate and form (4) .103/.097 Dia. holes
    Note: Adjust distance between holes (.93 typical) to obtain desired lock-up load.
  2. Attach with 3/32 diameter rivets (not supplied).
