Camloc Tension Latches 64L Series

Features

  • Adjustable for desired clamping load.
  • Single hole mounting.
  • Various actuator styles for tool or hand operation.
  • All latches shipped unassembled.
64L plastic wing actuator

64L Series

Grip Range: .600 inches maximum

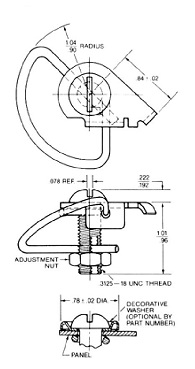

Slotted Version

64L slotted

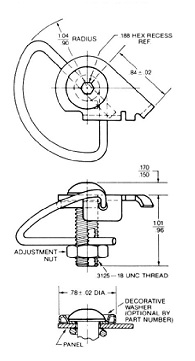

Hex Recess Version

64L hex recess

Wing Version

64L wing

Plastic Wing Version

64L plastic wing


Description

Material¹,²

Part No.

(lbs.)

Slotted

Steel (Cadmium Plated, Clear Chromate)

64L10-32-1AA

.056

Slotted With Decorative Washer

64L10-32-2AA¹

.061

Hex Recess

64L1-32-1AA

.054

Hex Recess With Decorative Washer

64L9-32-1AA¹

.058

Wing

64L11-32-1AA

.074

Plastic Wing

64L19-32-1AA²

.054

Notes:

  1. P/N's 64L10-32-2AA and 64L9-32-1AA decorative washer material: steel (chromium plated).
  2. P/N 64L19-32-1AA actuator knob material: black acetal homopolymer.
  3. All latches shipped unassembled.
H-44
