Light Duty Camloc Tension Latches

Latches are shown actual size. Illustrations are typical only, and size may vary by part numbers.

• = Illustrated in catalog

light duty tension latches

Series Number

Page Number

Specifications

Strength (lbs.)
Ultimate

Strength (lbs.)
Working

Operating Action
Over-Center

Take-up (inches)

Adjustment

30L

H-8

150

80

•

.155 Min.

Self-compensating spring-steel drawhook

34L

H-9

125

70

•

.150 Min.

Self-compensating spring-steel drawhook

47L

H-12

100

50

•

.520 Min.

Self-compensating spring-steel drawhook

95L

H-10 - H-11

100

50

•

1.000 Min.

Self-compensating spring element(s)

96L

H-10 - H-11

150

100

•

1.000 Min.

Self-compensating spring element(s)

Shown are typical light duty tension latches detailed in this section. See individual pages for size and performance variations.

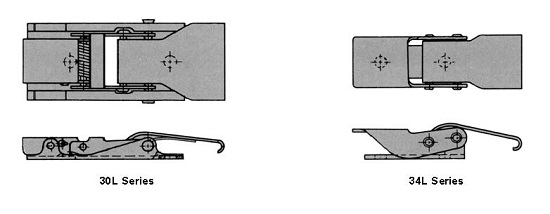

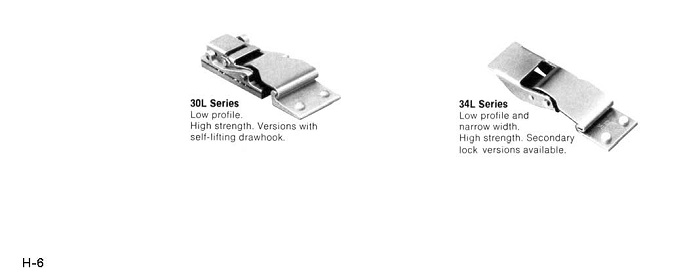

30L Series 34L Series
Overview H-1 Typical Applications H-2 Electronic Equipment H-3 Tension Latches H-4 Tension Latches H-5
Light Duty Tension Latches H-6 Light Duty Tension Latches H-7 30L Series H-8 34L Series H-9 95L Series H-10
96L Series H-11 47L Series H-12 Custom Latches H-13 Medium Duty Latches H-14 Medium Duty Latches H-15
20L Series H-16 20L Series H-17 20L Series H-18 29L Series H-19 51L Series H-20
51L Series Specs H-21 51L Series Strikes H-22 51L Installation Data H-23 69L Series Features H-24 69L Series Strikes H-25
When to Use Latches H-26 Heavy Duty Tension Latches H-27 17L Series H-28 18L Series H-29 37L Series H-30
37L Series Specs H-31 37L1/37L11/37L25 H-32 37L Strikes/Specs H-33 37L Attachments H-34 37L Seam Data H-35
137L Series H-36 46L Series H-37 49L Series H-38 46L/49L Installation H-39 58L Series H-40
58L Installation H-41 Pawl Latches H-43 64L Series H-44 64L Installation H-45 65L Series H-46
65L Installation H-47 106L Features H-48 106L Series H-49 106L Installation H-50 106L Attachments H-51
122L/123L Series H-52 122L Series H-53 123L Series H-54 122/123L Installation H-55 Panel Latches H-56
Actuated Latches H-57 KM610/KM680 Series H-58 KM610/KM680 Installation H-59 118L Series H-60 118L Installation H-61
104L Series H-62 PT104L Series H-63 119L Series H-64 119L Installation H-65
