Camloc Latches 29L Series

Features

Simple rugged design
Adjustable or Weld-on Base
Long handle for easy opening
Larger Scale than 20L Series for proportional considerations

Strength: 250 pounds ultimate; 150 pounds working.

Description	Material	Part No.	Weight Per Piece (lbs.)
Adjustable Base	Steel (Zinc Plated)	29L01-1-1AA	0.23
Weld-on Base Supplied with Weld Nibs	Drawhook: Steel (Zinc Plated) Base: Steel (Oil Coated)	29L01-2-1AB	0.24

Panel Preparation and Installation Data

Specifications

Material: See table.
Strength: 250 pounds ultimate; 150 pounds working.
Operating Action: Over-Center.
Adjustment: Self-compensating spring-steel drawhook. (29L01-1-1AA also has slotted base.)
Take-up: .500 inches minimum.

Mechanical Attachment

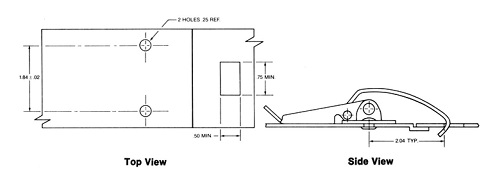

Locate and form two .25 Dia. (Ref.) holes

Note:

Attach with 1/4 inch bolts or rivets (not supplied).

Weld Attachment

Locate latch (see note above) and spot weld in place.
