Camloc Panel Latches - Flush Mounted

Push Button, 1/4 Turn and Trigger Actuated Latches

Latches are shown actual size. Illustrations are typical only, and size may vary by part numbers.

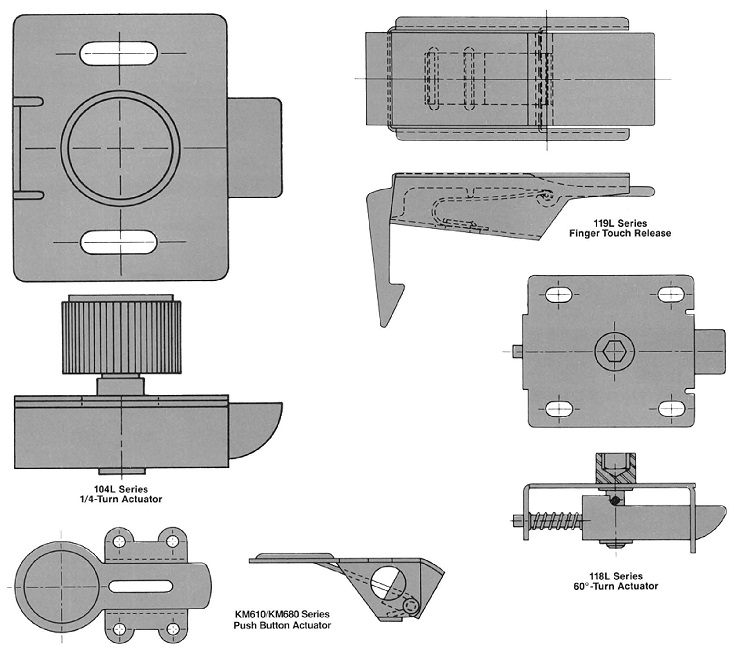

panel latch examples

Series Number	Page Number	Specifications				Features
		Strength	Panel Thickness for Flush Mount (inches)	Operating Action		Actuator Types		Installation Method
		Strength	Panel Thickness for Flush Mount (inches)	To Open	To Close	Hand-Operated Versions	Tool-Operated Versions	Mechanical Mounting Versions	Weld-on Mounting Versions
KM610	H-58 - H-59	Light Duty	.064/.032	Finger-touch Release	Push Shut	•		•	•
KM680	H-58 - H-59		.064 Nominal	Finger-touch Release		•		•	•
118L	H-60 - H-61		.064 Nominal	60° -Turn		•		•	•
104L	H-62 - H-63	Medium Duty	.120 Nominal (See Note)	1/4-Turn in either direction		•	•	•	•
119L	H-64 - H-65	Medium Duty	.091/.032	Hand-operated: Finger-touch release		•	•	•	•

Note: 104L Series hand operated actuators protrude above panel. • = Illustrated in catalog.

H-57

Overview H-1	Typical Applications H-2	Electronic Equipment H-3	Tension Latches H-4	Tension Latches H-5
Light Duty Tension Latches H-6	Light Duty Tension Latches H-7	30L Series H-8	34L Series H-9	95L Series H-10
96L Series H-11	47L Series H-12	Custom Latches H-13	Medium Duty Latches H-14	Medium Duty Latches H-15
20L Series H-16	20L Series H-17	20L Series H-18	29L Series H-19	51L Series H-20
51L Series Specs H-21	51L Series Strikes H-22	51L Installation Data H-23	69L Series Features H-24	69L Series Strikes H-25
When to Use Latches H-26	Heavy Duty Tension Latches H-27	17L Series H-28	18L Series H-29	37L Series H-30
37L Series Specs H-31	37L1/37L11/37L25 H-32	37L Strikes/Specs H-33	37L Attachments H-34	37L Seam Data H-35
137L Series H-36	46L Series H-37	49L Series H-38	46L/49L Installation H-39	58L Series H-40
58L Installation H-41	Pawl Latches H-43	64L Series H-44	64L Installation H-45	65L Series H-46
65L Installation H-47	106L Features H-48	106L Series H-49	106L Installation H-50	106L Attachments H-51
122L/123L Series H-52	122L Series H-53	123L Series H-54	122/123L Installation H-55	Panel Latches H-56
Actuated Latches H-57	KM610/KM680 Series H-58	KM610/KM680 Installation H-59	118L Series H-60	118L Installation H-61
104L Series H-62	PT104L Series H-63	119L Series H-64	119L Installation H-65
