Camloc 1/4 Turn Fasteners - 5F Series
Particular Features
- Max. tensile strength 670 N.
- Plastic washer stud assembly to protect decorative surfaces.
- Spring loaded receptacle.
Selection Instructions
- Select stud assembly and receptacle, page B-2 und B-4.
- Select retaining washer or grommet, page B-3.
- Select stud length number from total thickness G using the formula and table below, insert into
stud part number * (e.g. V5S5-*AGV).

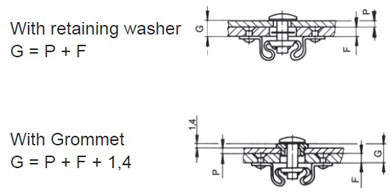

Determining the Stud Length Number
Stud Length Table
Total Thickness G |
Stud Length No. When Using Receptacles |
| 0,50 - 0,90 |
1 |
| 0,90 - 1,30 |
2 |
| 1,30 - 1,65 |
3 |
| 1,65 - 2,05 |
4 |
| 2,05 - 2,40 |
5 |
| 2,40 - 2,80 |
6 |
| 2,80 - 3,20 |
7 |
| 3,20 - 3,55 |
8 |
| 3,55 - 3,95 |
9 |
| 3,95 - 4,30 |
10 |
| 4,30 - 4,70 |
11 |
| 4,70 - 5,10 |
12 |
| 5,10 - 5,45 |
13 |
| 5,45 - 5,85 |
14 |
| 5,85 - 6,20 |
15 |
| 6,20 - 6,60 |
16 |
| 6,60 - 7,00 |
17 |
| 7,00 - 7,35 |
18 |
| 7,35 - 7,75 |
19 |
| 7,75 - 8,15 |
20 |
| 8,15 - 8,50 |
21 |
Preferred Dash-Lengths
Stud Assemblies
Style |
Dimensions |
Materials / Finish |
°C |
Part No. |
Slotted Recess Head
 |
S = 6,70 + (0,38 x length no.)
|
Steel / zinc-plated, CrVI-free, transparent passivated with plastic washer (PA6) |
120 |
V5S5- *AGV |
Steel / nickel-plated with plastic washer (PA6) |
120 |
5S27-* |
Cross Recess Head
 |
S = 6,70 + (0,38 x length no.)
|
Steel / zinc-plated, CrVI-free, transparent passivated with plastic washer (PA6) |
120 |
V5S21- *AGV |
Stainless steel with stainless steel washer (tensile strength 470 N max.) |
230 |
5S15-* |
*Length no. from Table
For installation dimensions see next page.
