Camloc 1/4 Turn Fasteners - 99F Series
Particular Features
- Max. tensile strength 700 N.
- Increased grip range.
- Receptacles with external thread for screwing or retaining nut.
- Encapsulated design, splash-proof.
Selection Instructions
- Select stud assembly and receptacle
- Select hex nut for receptacle
- Select stud retaining washer
- Select stud length number from total thickness G using the formula and table below, insert into stud
part number * (e.g. 99S10-*A1).
Determining the Stud Length Number
Stud Length Table
Total Thickness G |
Stud Length No. |
| 0,50 - 1,5 |
1 |
| 1,5 - 3,0 |
3 |
| 3,0 - 4,5 |
5 |
| 4,5 - 6,0 |
7 |
| 6,0 - 7,5 |
9 |
| 7,5 - 9,0 |
11 |
| 9,0 - 10,5 |
13 |
| 10,5 - 12,0 |
15 |
| 12,0 - 13,5 |
17 |
| 13,5 - 15,0 |
19 |
Preferred Dash-Lengths
Stud Assemblies
Style |
Dimensions |
Materials / Finish |
°C |
Part No. |

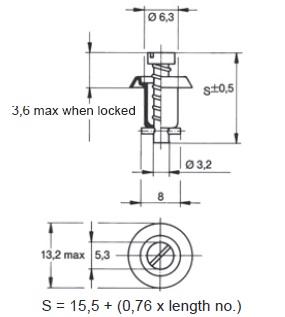

Slotted Recess Head
 |
|
Steel / zinc-plated, CrVI-free, transparent passivated |
230 |
99S10-*A1 |
*Length no. from Table
For installation dimensions see above table.
Stud Installation Instructions
Installation Dimensions |
Accessories |
Materials / Finish |
Part No. |
Panel Thickness P 0,5 - 3,2
For P up to 1,65m Ø 6,5 for installation without retaining washer |
Retaining Washer
 |
Stainless Steel |
2600-SW |
Panel Thickness P over 3,2
 |
Panel Thickness P 0,5 - 4,75
 |
Retaining Washer
 |
Steel / zinc-plated, CrVI-free, transparent passivated
Stainless Steel |
99W10-01A1
V2600-LW-7 |
|
Mounting Tool
for Retaining Washer
V2600-LW-7 |
T98-1 |
99F Series Receptacles
Style |
Dimensions |
Materials / Finish |
°C |
Part No. |
Open
 |
|
Zinc die casting / zinc-plated, CrVI-free, transparent passivated |
150 |
99R10-01A1 |
Encapsulated
 |
|
Zinc die casting / zinc-plated, CrVI-free, transparent passivated
Capsule: Stainless Steel |
150 |
99E10-01 |
Receptacle Installation Instructions
Installation Dimensions |
Accessories |
Materials / Finish |
Part No. |
|
Retaining Nut
 |
Steel / zinc-plated, CrVI-free, transparent passivated |
99N10-01A1
15/32-32UNS-2B |
